Beyond the Port: The Strategic Importance of Motherboard Pin Headers

While external ports like USB-C get all the attention, the humble Pin Header remains the most versatile interface on a motherboard.

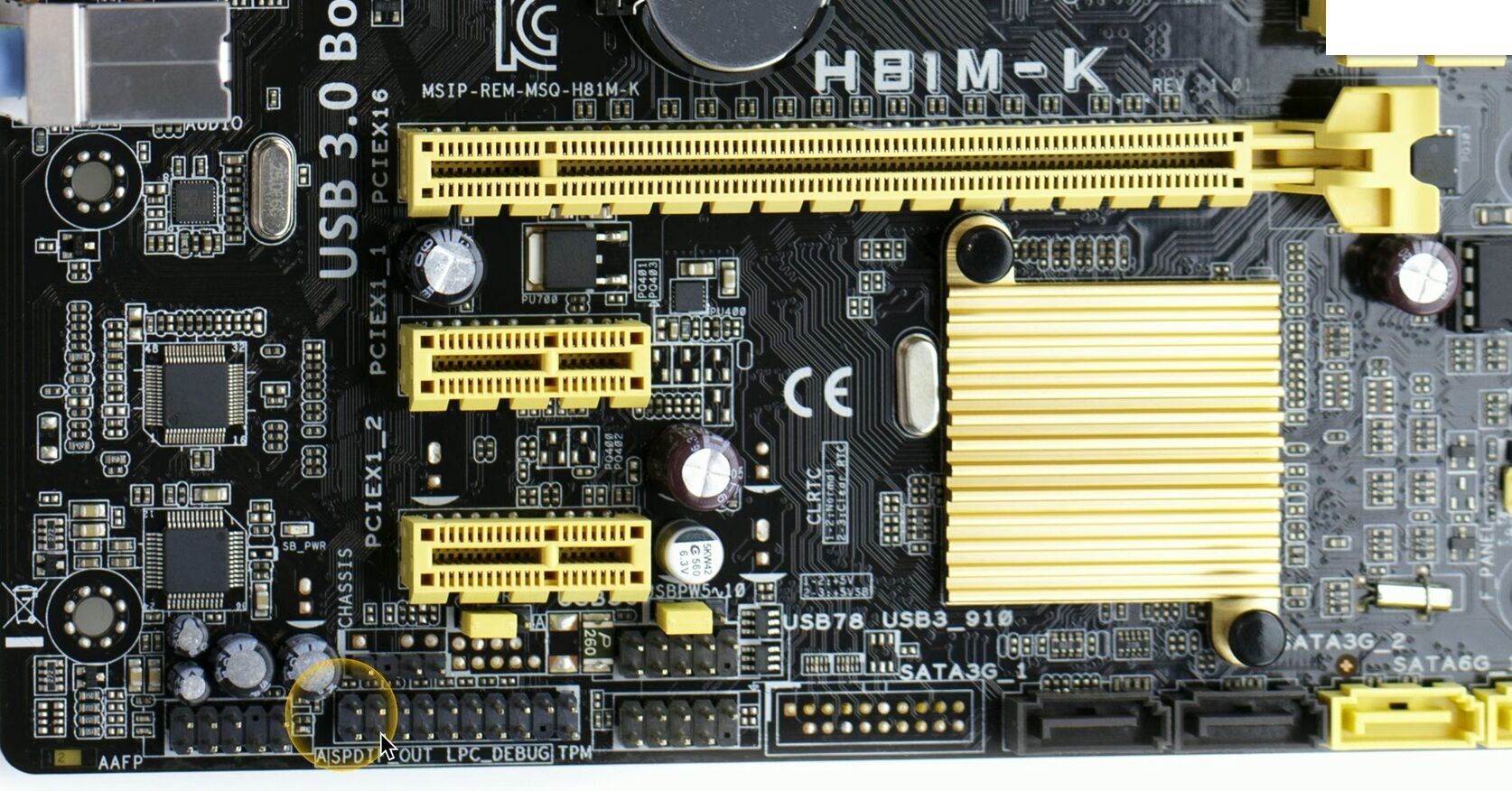

Looking at the highlighted area in the image, we see just a fraction of the internal connectivity that allows a PC to interact with the physical world.

These pins are the bridge between the logic board and the external chassis, enabling essential tactile controls.

Even in modern IT environments, these headers are required for several critical external functions:

• Power & Reset Switches: The fundamental tactile buttons that trigger the system’s power state.
• LED Indicators: Providing visual telemetry for Power status and Storage (HDD/SSD) activity.
• Chassis Intrusion: A security-focused header that triggers an alert if the physical case is opened.
• Clear CMOS (CLRTC): A vital troubleshooting pin used to reset BIOS/UEFI settings to factory defaults without software access.
• USB & Audio Expansion: Internal headers that power the front-facing I/O of any professional workstation.

For a technical consultant, understanding these headers is key to custom system integration and hardware diagnostics. They remind us that at the heart of every complex digital system, there is still a simple, reliable physical connection.
