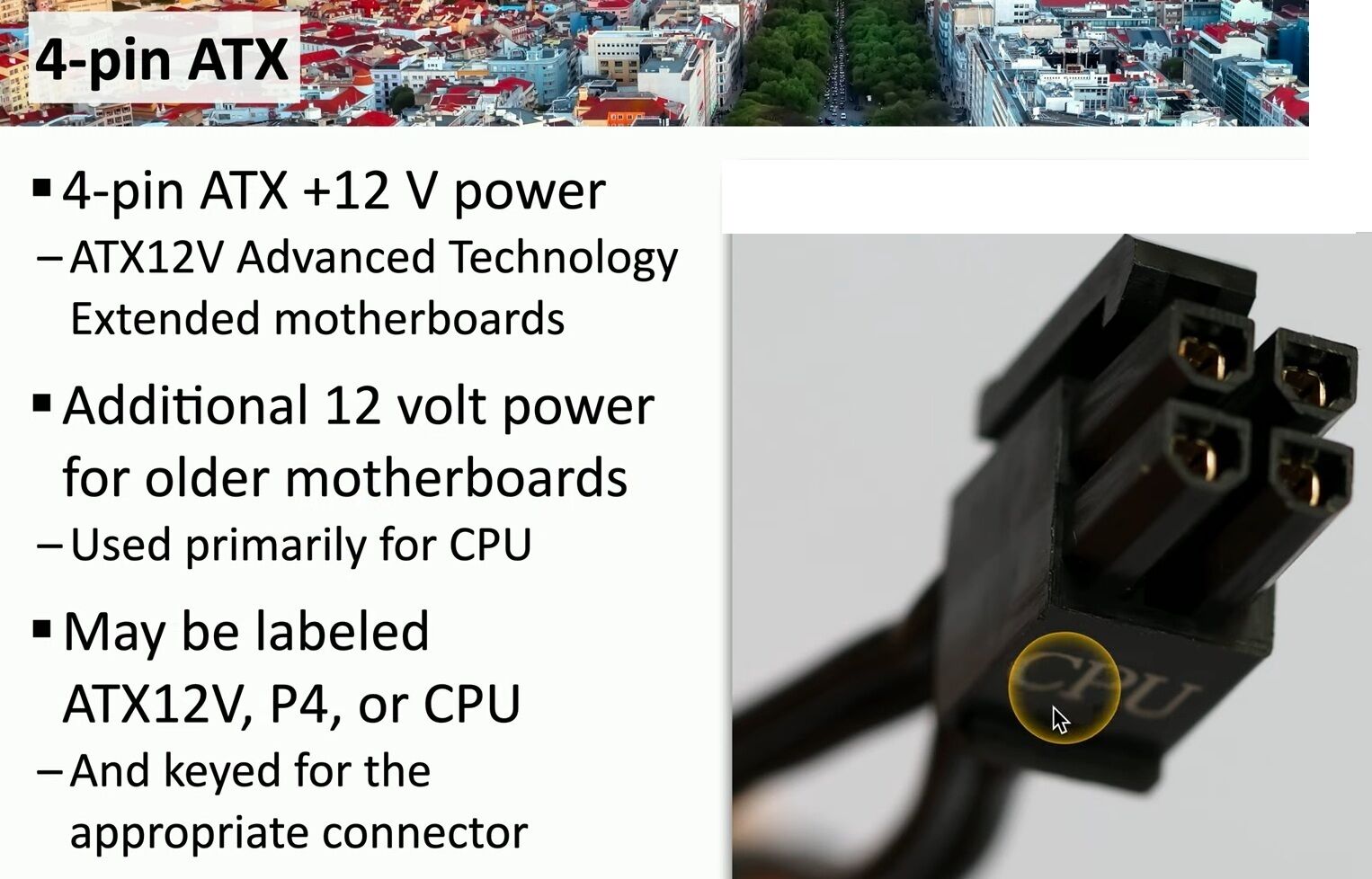

Understanding the 4-Pin ATX +12V Power Connector

The 4-pin ATX12V connector is a crucial component in older and some modern motherboards, providing additional 12V power to the CPU. This connector plays a vital role in ensuring stable power delivery, particularly for processors that require more than what the standard 24-pin ATX connector can provide.

Key Features of the 4-Pin ATX12V Connector

✅ Power Supply for the CPU – Delivers 12V power directly to the processor for stable performance.
✅ Compatibility with Older Motherboards – Commonly found in legacy systems, but still used in some modern budget builds.
✅ Labeling and Keying – Typically marked as ATX12V, P4, or CPU, and designed with keyed connectors to prevent misalignment.

Why It Matters?

Ensuring proper power connections is essential for system stability. An improperly connected or missing ATX12V power cable can lead to boot failures, random crashes, or complete system shutdowns. Always check your motherboard manual to confirm the required power connectors before assembling your system.
